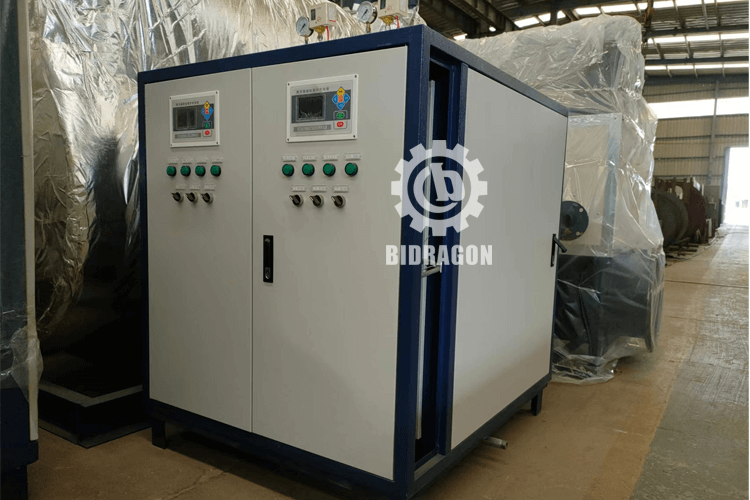

Electric Heating Steam Generator Introduction
LDR series full automatic electric heating boiler is a kind of new high technology product which takes electricity as energy. This electric steam generator has the advantages of environmental protection, no pollution, no noise, convenient installation, small occupation, full automatic control and high thermal efficiency.
Structure features of electric heating steam generator:
1). Heating tube built-in direct heating,
Touching water directly in order to increase heat transfer area.
Compact structure, small size, easy to install, maintain and replace.
This type electric steam generator shell adopts stainless steel, safety and reliable, long lifespan.
2). Electric heating type ensures heating efficiency up 98%, no pollution.
3). Uniform heating area, stable heating type, large evaporation area.
4). Various automatic protection functions: pressure controller, advanced program control, automatic , interlock, automatic alarm, which achieves automatic control. Our electric steam boiler has the automatic protection function of overheating, over-voltage, water shortages, short circuit, phase loss, leakage and so on, safe and reliable, easy to operate.
Electrical Steam Generator Working Video:
LDR series full automatic electric heating boiler is a kind of new high technology product which takes electricity as energy. This electric steam generator has the advantages of environmental protection, no pollution, no noise, convenient installation, small occupation, full automatic control and high thermal efficiency.
Structure features of electric heating steam generator:
1). Heating tube built-in direct heating,
Touching water directly in order to increase heat transfer area.
Compact structure, small size, easy to install, maintain and replace.
This type electric steam generator shell adopts stainless steel, safety and reliable, long lifespan.
2). Electric heating type ensures heating efficiency up 98%, no pollution.
3). Uniform heating area, stable heating type, large evaporation area.
4). Various automatic protection functions: pressure controller, advanced program control, automatic , interlock, automatic alarm, which achieves automatic control. Our electric steam boiler has the automatic protection function of overheating, over-voltage, water shortages, short circuit, phase loss, leakage and so on, safe and reliable, easy to operate.
Electrical Steam Generator Working Video:
Electric Steam Generator Technical Parameter
| Model | Design pressure (Mpa) |
Electrical power (KW) |
Steam evaporation capacity (kg) |
Dimensions (mm) |
Weight (kg) |
Design temperature | Agent Exw price (USD) |
| LDR0.013-0.7 | 0.7 | 9 | 13 | 460X580X1180 | 50 | 170°C | 1000 |
| LDR0.017-0.7 | 0.7 | 12 | 17 | 460X580X1180 | 50 | 1100 | |
| LDR0.025-0.7 | 0.7 | 18 | 25 | 460X580X1180 | 50 | 1160 | |
| LDR0.035-0.7 | 0.7 | 24 | 35 | 500X710X1180 | 60 | 1300 | |
| LDR0.05-0.7 | 0.7 | 36 | 50 | 500X710X1180 | 60 | 1400 | |
| LDR0.075-0.7 | 0.7 | 48 | 75 | 500X710X1180 | 60 | 1550 | |
| LDR0.1-0.7 | 0.7 | 72 | 100 | 920X580X1460 | 70 | 2050 | |
| LDR0.13-0.7 | 0.7 | 96 | 130 | 930X700X1250 | 70 | 2250 | |
| LDR0.2-0.7 | 0.7 | 144 | 200 | 950X650X1460 | 90 | 3380 | |
| LDR0.3-0.7 | 0.7 | 216 | 300 | 1500X700X1460 | 200 | 5200 | |
| LDR0.5-0.7 | 0.7 | 360 | 500 | 2400X600X1460 | 200 | 7000 |
.jpg)
