Vertical Oil and Gas Fired Thermal Oil Boiler
Fuel: oil gas fired
Working Medium：thermal oil
Temperature: Max. 320℃
Heating Capacity: (10-1000)×104kCal/h
Designed pressure: 1.1MPa
Application

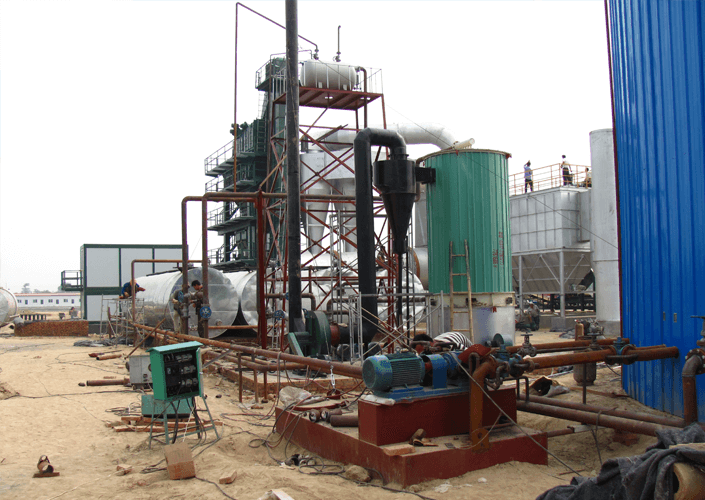

This boiler uses diesel oil or natural gas as fuel in the thermal oil heat carrier. The boiler is designed for use in low pressure, high temperature environments, providing a highly efficient heat energy. We can design this boiler in a horizontal or vertical design, as well as a gas fired thermal oil boiler, all based on customer requirements. If designed in a vertical structure, compared to the horizontal design, installation is easier, faster, and covers less area. These oil and gas fired boilers are then used in petrochemical plants, grease processing plants, building materials processing plants, chemical plants, textile processing plants, food processing plants, plastic and rubber processing plants, pharmaceutical plants, paper plants and bitumen plants.
Vertical Oil Gas Fired Thermal Oil Boiler Working Video:
| Model | YY(Q)L120 Y(Q) |
YY(Q)L240 Y(Q) |
YY(Q)L350Y(Q) | YY(Q)L500Y(Q) | YY(Q)L700Y(Q) | YY(Q)L930Y(Q) | YY(Q)L1200Y(Q) | YY(Q)L1400Y(Q) | YY(Q)L2000Y(Q) | YY(Q)L2400Y(Q) | ||
| Rated Thermal power | kW | 120 | 240 | 350 | 500 | 700 | 930 | 1200 | 1400 | 2000 | 2400 | |
| X104Kcal | 10 | 20 | 30 | 40 | 60 | 80 | 100 | 120 | 160 | 200 | ||
| Heat Efficiency（≥%） | Y | 96.10 | 96.09 | 96.28 | 96.27 | 96.02 | 96.00 | 96.06 | 96.03 | 96.07 | 96.06 | |
| Q | 98.05 | 98.04 | 98.23 | 98.20 | 98.53 | 98.52 | 98.16 | 98.53 | 98.55 | 98.50 | ||
| Designed Pressure (Mpa) | 1.1 | |||||||||||
| Medium Max. Temp.(℃) | 320 | |||||||||||
| Circulation Oil Flow(m3/h) | 12.5 | 18 | 30 | 30 | 60 | 80 | 100 | 100 | 160 | 160 | ||
| Oil Capacity (m3) | 0.09 | 0.12 | 0.29 | 0.38 | 0.52 | 0.57 | 0.74 | 0.92 | 1.55 | 1.77 | ||
| Piping Connection Inner Diameter(DN) | 50 | 50 | 65 | 65 | 100 | 100 | 150 | 150 | 150 | 150 | ||
| Total Power(kW) | 4.7 | 7.2 | 9.5 | 9.8 | 17.6 | 18.0 | 25.7 | 26.5 | 44.0 | 53.5 | ||
| Transportation Size(mm) |
L | 1575 | 1845 | 2123 | 2535 | 2703 | 3376 | 3655 | 4279 | 5662 | 5565 | |
| W | 1340 | 1340 | 1807 | 1818 | 2155 | 2243 | 2390 | 2490 | 2386 | 2680 | ||
| H | __ | __ | __ | __ | __ | __ | __ | 2400 | 2557 | 2680 | ||
| Weight (kg) | 1550 | 1632 | 2745 | 3146 | 3771 | 4496 | 4993 | 5680 | 7700 | 8765 | ||
| Model | YY(Q)L3000Y(Q) | YY(Q)L3500Y(Q) | YY(Q)L4100Y(Q) | YY(Q)L4700Y(Q) | YY(Q)L6000Y(Q) | YY(Q)L7000Y(Q) | YY(Q)L8200Y(Q) | YY(Q)L9300Y(Q) | YY(Q)L12000Y(Q) | __ | ||
| Rated Thermal power | kW | 3000 | 3500 | 4100 | 4700 | 6000 | 7000 | 8200 | 9300 | 12000 | __ | |
| X104Kcal | 250 | 300 | 350 | 400 | 500 | 600 | 700 | 800 | 1000 | __ | ||
| Heat Efficiency（≥%） | Y | 96.00 | 96.10 | 96.01 | 96.20 | 96.18 | 96.17 | 92.98 | 96.06 | 96.11 | __ | |
| Q | 98.02 | 98.03 | 98.06 | 98.07 | 98.04 | 98.08 | 92.15 | 98.39 | 98.05 | __ | ||
| Design Pressure (Mpa) | 1.1 | |||||||||||
| Medium Max. Temp.(℃) | 320 | |||||||||||
| Circulation Oil Flow(m3/h) | 180 | 200 | 250 | 250 | 350 | 400 | 350 | 500 | 600 | __ | ||
| Oil Capacity (m3) | 1.96 | 3.78 | 4.61 | 5.70 | 7.40 | 8.35 | 9.50 | 10.20 | 13.30 | __ | ||
| Piping Connection Inner Diameter(DN) | 150 | 200 | 200 | 250 | 250 | 250 | 300 | 300 | 300 | __ | ||
| Total Power(kW) | 77.2 | 87.2 | 111.7 | 120.2 | 164.2 | 165 | 202 | 198 | 201 | __ | ||
| Transportation Size |
L | 6210 | 6894 | 7485 | 7588 | __ | 9136 | 10807 | 10966 | 11679 | __ | |
| W | 2611 | 2989 | 3291 | 3380 | __ | 3844 | 4200 | 4280 | 4197 | __ | ||
| H | 2780 | 3140 | 2937 | 3315 | __ | 3390 | 3560 | 3610 | 3900 | __ | ||
| Weight (kg) | 10267 | 16743 | 17446 | 20669 | 29682 | 31000 | 34640 | 36852 | 49380 | __ | ||
| Remark 1: Above all data according to standards of natural gas low position calorific value8400kcal/Nm, diesel low position calorific value 10250kcal/kg. Remark 2: Due to continuous improvement, we reserve the right to modify the appearance& specifications. The above parameters are for reference only, please refer to the final drawing. Remark 3: Y for diesel oil fired, Q for gas fired. |
||||||||||||
