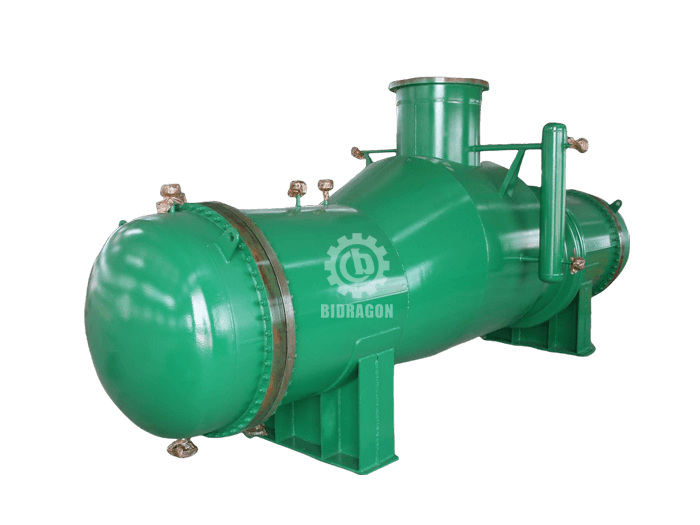

Thermal Oil Steam Generator
Scan the QR code
bidragon mainly designs and produces various industrial boilers and pressure vessels. Its main products include thermal oil boilers, thermal oil steam generators, steam boilers, biomass boilers, molten salt boilers, waste heat boilers, etc.
Share to:
1.Thermal oil steam generator is composed by hot oil part and steam generator part.
In the hot oil part, the high-temperature thermal oil through the hot oil pump or by thermal oil heater directly into the steam generator tube bank. The heat contained in hot thermal oil passing through the pipe at certain temperature and velocity and transferring the heat to contacted water outside tubes. Heated water generates steam and cooled thermal oil will return to the thermal oil heater for new circle.
Thermal oil steam generator should use soften water. It will get more steam if using preheated soften water. Soften water entering generator at bottom and heated under normal convection. Saturated steam connected with steam manifold to supply steam for production and daily life.
2.Main characters:
Adopts hot oil as heat source, saving the energy. High thermal efficiency, completely burning, stable output, better adaptability to variable load. Compact structure, small area requirement. The steam temperature can be controlled Savings: It has the characteristics of high temperature and low pressure, it could reduce the pressure rating of the equipment, and could reduce the investment costs of the equipment.3. Technical parameter
RYL-MA series of coal fired travelling grate molten salt furnace | |||||||||||
Model |
RYL- 1400MA (120×104 Kcal) |
RYL- 1900MA (160×104 Kcal) |
RYL- 2400MA (200×104 Kcal) |
RYL- 3000MA (250×104 Kcal) |
RYL- 3500MA (300×104 Kcal) |
RYL- 5200MA (450×104 Kcal) |
RYL- 6600MA (550×104 Kcal) |
RYL- 7000MA (600×104 Kcal) |
RYL- 9300MA (800×104 Kcal) |
RYL- 14000MA (1200×104 Kcal) |
|
Rated Thermal Power KW | 1400 | 1900 | 2400 | 3000 | 3500 | 5200 | 6600 | 7000 | 9300 | 14000 | |
Thermal Efficiency % | ≥65 | ||||||||||
Pressure Mpa | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
Max. Temp. ℃ | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | |
Circulation Oil m3/h | 80 | 90 | 100 | 120 | 140 | 160 | 250 | 300 | 350 | 550 | |
Pipe DN | 125 | 125 | 150 | 150 | 150 | 200 | 200 | 250 | 250 | 300 | |
System Power kW | 80 | 90 | 100 | 120 | 120 | 160 | 240 | 240 | 320 | 400 | |
Fuel | MA Ⅱ、Ⅲ | ||||||||||
Fuel Weight kg/h | 350 | 480 | 600 | 720 | 900 | 1200 | 1500 | 1800 | 2200 | 3300 | |
Dimension | L mm | 4800 | 4800 | 6900 | 6900 | 7500 | 8700 | 8700 | 8700 | 10000 | 12500 |
W mm | 2100 | 2100 | 2500 | 2500 | 2500 | 3000 | 3480 | 3480 | 4400 | 4400 | |
H mm | 6300 | 7600 | 8800 | 10000 | 8500 | 10000 | 12500 | 13500 | 16200 | 18500 | |
Total Weight kg | 20000 | 25000 | 30000 | 35000 | 41000 | 55000 | 65000 | 80000 | 145000 | 220000 |
4.System diagram
Prev: Bidragon Thermal Oil Heaters Boilers
Next: YLW Coal Biomass Thermal Oil Heater Boiler Chain Grate
